Note : This thread is intended to be a general discussion of the following ESC and as a place for discussing features or issues regarding the same.

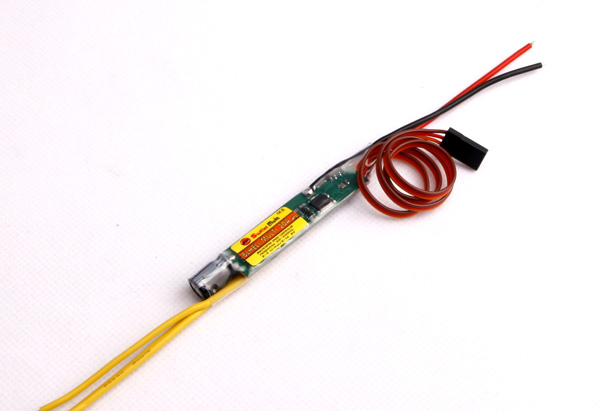

Sunrise Slim 20A ESC

http://www.himodel.com/img_sub/rc_img/14/01/10334.jpg
Sunrise Slim 20A ESC - General Discussion


http://i1183.photobucket.com/albums/x462/mnemennth/Sunrise%2020A%20and%20Programming%20Adapters/SunriseSlim20AAtmelRev1.png
Sunrise Slim 20A ESC - General Discussion


These ESC's are just great.
- At the cost of a cheap ESC, you get a nice 20A ESC which weighs nothing but 5.5 grams without the wires.
- It has a very slim form factor which can easily fit inside the arms of most of the quadcopters for a very clean build.
- They also run Blheli, which is gaining popularity over SimonK as it has some really interesting features like Active Braking and OneShot.
Logged


Read
« Reply #1 on: May 28, 2016, 01:31:41 PM »
sooraj.palakkad
with eyes in sky
Heli Lover
Forum Hero

*****

Reputation Power: 21
sooraj.palakkad barely matters.sooraj.palakkad barely matters.
Offline Offline

City: Palakkad
State: Kerala
RC Skills: Expert
Posts: 2058
Join Date: Aug, 2014

SPN



Anyone tried flashing SimonK on this ESC ?
Logged

RC Hobbyist and an Aerial Cinematographer..


Read
« Reply #2 on: May 28, 2016, 02:19:43 PM »
Voice of deaf
Plane Lover
Forum Veteran

****

Reputation Power: 4
Voice of deaf has no influence.
Offline Offline

State: Rajasthan
RC Skills: Intermediate
Posts: 297
Join Date: Apr, 2016



Or multishot?
Logged

Born for FPV, Forced to LOS.


Read
« Reply #3 on: May 28, 2016, 03:02:52 PM »
SK1701
Heli Lover
Forum Hero

*****

Reputation Power: 11
SK1701 has no influence.
Offline Offline

City: Montreal/ Bangalore
State: OUTSIDE INDIA
RC Skills: Intermediate
Posts: 888
Join Date: Oct, 2014

set acc_hardware = 1



Multishot doesn't work with Atmel ESCs.
Logged



Read
« Reply #4 on: May 28, 2016, 04:35:15 PM »
Voice of deaf
Plane Lover
Forum Veteran

****

Reputation Power: 4
Voice of deaf has no influence.
Offline Offline

State: Rajasthan
RC Skills: Intermediate
Posts: 297
Join Date: Apr, 2016



So will it work on silabs ?
If yes which ones ?
Logged

Born for FPV, Forced to LOS.


Read
« Reply #5 on: May 28, 2016, 04:50:14 PM »
SK1701
Heli Lover
Forum Hero

*****

Reputation Power: 11
SK1701 has no influence.
Offline Offline

City: Montreal/ Bangalore
State: OUTSIDE INDIA
RC Skills: Intermediate
Posts: 888
Join Date: Oct, 2014

set acc_hardware = 1



I use Multishot on my Little Bee 20A (SiLabs F330). It works fine but F330 ESCs cannot go above 4kHz PID loop/ ESC update rate (and even that is a bit risky) and I only run 2kHz to be safe. At such low refresh rates there isn't really any need/ advantage of Multishot. I only flashed it for the cool startup tones and for any marginal advantage it may or may not have. F39x ESCs can go higher, up to 8kHz PID loop with Multishot (if your flight controller can take it). They can also go up to 32kHz ESC update rate if you unsync it from the PID loop (though the benefits of doing this are debateable).
Logged



Read
« Reply #6 on: May 28, 2016, 08:26:05 PM »
Voice of deaf
Plane Lover
Forum Veteran

****

Reputation Power: 4
Voice of deaf has no influence.
Offline Offline

State: Rajasthan
RC Skills: Intermediate
Posts: 297
Join Date: Apr, 2016



Okay  thanks
that was quite info.
