« Reply #25 on: February 26, 2013, 01:18:08 AM »
sundaram
FAN OF FPV FLYING, AERIAL PHOTOGRAPHY & MICRO RC
Plane Lover
Forum Hero

*****

Reputation Power: 38
sundaram is working their way up.sundaram is working their way up.sundaram is working their way up.
Offline Offline

City: Gandhinagar
State: Gujarat
RC Skills: Advanced
Posts: 3407
Join Date: Nov, 2009



 Yes VC uncle my apologies, I was thinking you were 55, I never knew  by now you are 65  Grin   Wink  Cheesy  HaHaHa



Thank you VC  Hats Off
Logged



Read
« Reply #26 on: February 26, 2013, 01:20:59 AM »
VC
Boat Lover
Forum Hero

*****

Reputation Power: 64
VC is a rising star!VC is a rising star!VC is a rising star!VC is a rising star!VC is a rising star!VC is a rising star!
Offline Offline

City: Guwahati
State: Assam
RC Skills: Beginner
Posts: 5598
Join Date: Nov, 2009

L'enfant Terrible du RCIndia



Getting there, getting there, yet 18 till I die!

Seriously Sandy, that is a very good looking wing. Teach me. I have a BIG Tow Line Glider (64" span) returning my way from Anta. I want it to look like this.

Please note that it will be an Under Cambered wing.
Logged

Growing old is mandatory, growing up is optional!


Read
« Reply #27 on: February 26, 2013, 01:29:45 AM »
sundaram
FAN OF FPV FLYING, AERIAL PHOTOGRAPHY & MICRO RC
Plane Lover
Forum Hero

*****

Reputation Power: 38
sundaram is working their way up.sundaram is working their way up.sundaram is working their way up.
Offline Offline

City: Gandhinagar
State: Gujarat
RC Skills: Advanced
Posts: 3407
Join Date: Nov, 2009



you look 18 too!!!  No wonder many like me do not Consider your age at all  Grin

surely VC. I have your inchworm Glider too which I have to assemble in coming days.
Logged



Read
« Reply #28 on: March 14, 2013, 09:13:44 AM »
sundaram
FAN OF FPV FLYING, AERIAL PHOTOGRAPHY & MICRO RC
Plane Lover
Forum Hero

*****

Reputation Power: 38
sundaram is working their way up.sundaram is working their way up.sundaram is working their way up.
Offline Offline

City: Gandhinagar
State: Gujarat
RC Skills: Advanced
Posts: 3407
Join Date: Nov, 2009



Some more build progress.

The Engine Mount with reinforced firewall and side walls. I vaguely see a similarity with a cox bench test mount   Grin

https://lh3.googleusercontent.com/-yH1mqeBsdT4/UUE8qhQoEJI/AAAAAAAAAvw/RsJ44NTLNts/s900/2013+-+2
Build and fly IDOL LASER CUT KIT 890mm from Hobby King with 1/2 Glow Engine


The Tail wheel

https://lh4.googleusercontent.com/-0za2kszEAks/UUE8qmVtudI/AAAAAAAAAvw/9rugBNi2OTs/s900/2013+-+3
Build and fly IDOL LASER CUT KIT 890mm from Hobby King with 1/2 Glow Engine


The Servos receiver and BEC

https://lh4.googleusercontent.com/-ssxavNpfYAs/UUE8qpiZk9I/AAAAAAAAAvw/6DeqiyIIg6g/s900/2013+-+4
Build and fly IDOL LASER CUT KIT 890mm from Hobby King with 1/2 Glow Engine


the control linkages done

https://lh3.googleusercontent.com/-FGR2Pbhc-Q0/UUE8qv1MXtI/AAAAAAAAAvw/k8ewugR5i_Q/s900/2013+-+8
Build and fly IDOL LASER CUT KIT 890mm from Hobby King with 1/2 Glow Engine


https://lh5.googleusercontent.com/-S_vIQisYVmY/UUE8qheegGI/AAAAAAAAAvw/LrQMUbHRNPc/s900/2013+-+9
Build and fly IDOL LASER CUT KIT 890mm from Hobby King with 1/2 Glow Engine


« Last Edit: March 14, 2013, 09:34:26 AM by sundaram » Logged



Read
« Reply #29 on: March 14, 2013, 09:14:06 AM »
sundaram
FAN OF FPV FLYING, AERIAL PHOTOGRAPHY & MICRO RC
Plane Lover
Forum Hero

*****

Reputation Power: 38
sundaram is working their way up.sundaram is working their way up.sundaram is working their way up.
Offline Offline

City: Gandhinagar
State: Gujarat
RC Skills: Advanced
Posts: 3407
Join Date: Nov, 2009




The Engine mounted hope it fly's the model.

https://lh6.googleusercontent.com/-nMN3GbziDz8/UUE8qjLr-ZI/AAAAAAAAAvw/cgqMATbErXI/s900/2013+-+6
Build and fly IDOL LASER CUT KIT 890mm from Hobby King with 1/2 Glow Engine


https://lh6.googleusercontent.com/-tDFjfOI3t50/UUE8qn3VvYI/AAAAAAAAAvw/AtGMGI25Ato/s900/2013+-+10
Build and fly IDOL LASER CUT KIT 890mm from Hobby King with 1/2 Glow Engine


Appologies forgot to take the photographs of the wing joiner and wing joining.

Dry fit of the wing on the model

https://lh4.googleusercontent.com/-oEnCcryXs-c/UUE8qvXTcdI/AAAAAAAAAvw/sDuo-XMUf6k/s900/2013+-+12
Build and fly IDOL LASER CUT KIT 890mm from Hobby King with 1/2 Glow Engine


https://lh4.googleusercontent.com/-S9_SwaY1P-o/UUE8qpWjUyI/AAAAAAAAAvw/u2-hUDygyf4/s900/2013+-+11
Build and fly IDOL LASER CUT KIT 890mm from Hobby King with 1/2 Glow Engine


https://lh6.googleusercontent.com/-vxKvvCG9dF0/UUE8qqDJGTI/AAAAAAAAAvw/1Trq9eoxzQY/s900/2013+-+13
Build and fly IDOL LASER CUT KIT 890mm from Hobby King with 1/2 Glow Engine

Logged



Read
« Reply #30 on: March 14, 2013, 09:24:51 AM »
sundaram
FAN OF FPV FLYING, AERIAL PHOTOGRAPHY & MICRO RC
Plane Lover
Forum Hero

*****

Reputation Power: 38
sundaram is working their way up.sundaram is working their way up.sundaram is working their way up.
Offline Offline

City: Gandhinagar
State: Gujarat
RC Skills: Advanced
Posts: 3407
Join Date: Nov, 2009



So Whats left now are

1. Hinging of the control surfaces and linking.
2. Covering the sides.
3. Fixing the rubber band spar and rubber band.
4. Decals and numbering.
5. Fixing of battery based on the CG.

The engine has been run in and has been replaced with a Mylar reed valve. Lets see, on the bench it looks Nice so far. RPM of 12820 with a 6x4 prop.

Should touch a 13000 to 14000 in air. Thats about 250 to 300 gms of static thrust.

Yet to do the final weighing in lets see how it turns out.

I wanted it to be a slow flier and a floater for Param. If it is not able to carry well will be changing to electric.  Tongue
Logged



Read
« Reply #31 on: March 14, 2013, 09:33:28 AM »
sanjayrai55
Plane Lover
Forum Hero

*****

Reputation Power: 85
sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.
Offline Offline

City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 8337
Join Date: Dec, 2011

Don't wake a Tiger until you've factored the teeth



Looks a real winner sir

Sent from my GT-S7562 using Tapatalk 2
Logged



Read
« Reply #32 on: March 14, 2013, 09:54:46 AM »
sundaram
FAN OF FPV FLYING, AERIAL PHOTOGRAPHY & MICRO RC
Plane Lover
Forum Hero

*****

Reputation Power: 38
sundaram is working their way up.sundaram is working their way up.sundaram is working their way up.
Offline Offline

City: Gandhinagar
State: Gujarat
RC Skills: Advanced
Posts: 3407
Join Date: Nov, 2009



thank you sir  Smiley
Logged



Read
« Reply #33 on: March 14, 2013, 11:23:47 AM »
saikat
Plane Lover
Forum Hero
*****

Reputation Power: 14
saikat has no influence.
Offline Offline

City: Tezpur
State: Tripura
RC Skills: Expert
Posts: 1130
Join Date: Jul, 2009



Probably be underpowered - that is a draggy airframe.

Logged



Read
« Reply #34 on: March 14, 2013, 11:35:52 AM »
sundaram
FAN OF FPV FLYING, AERIAL PHOTOGRAPHY & MICRO RC
Plane Lover
Forum Hero

*****

Reputation Power: 38
sundaram is working their way up.sundaram is working their way up.sundaram is working their way up.
Offline Offline

City: Gandhinagar
State: Gujarat
RC Skills: Advanced
Posts: 3407
Join Date: Nov, 2009



I was doubting the Same. However I was aiming for a slow floater for calm wind less days' so going ahead with it for now.

Sent from my GT-N7100 using Tapatalk 2
Logged



Read
« Reply #35 on: March 15, 2013, 12:49:19 AM »
sundaram
FAN OF FPV FLYING, AERIAL PHOTOGRAPHY & MICRO RC
Plane Lover
Forum Hero

*****

Reputation Power: 38
sundaram is working their way up.sundaram is working their way up.sundaram is working their way up.
Offline Offline

City: Gandhinagar
State: Gujarat
RC Skills: Advanced
Posts: 3407
Join Date: Nov, 2009

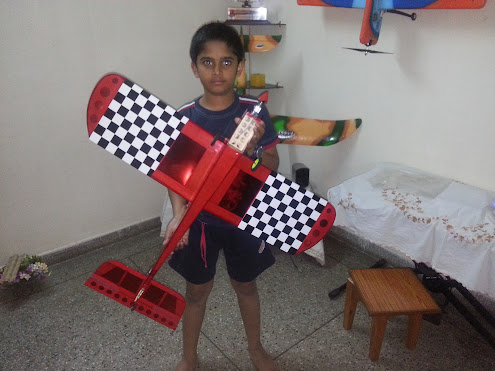

finally completed

https://lh3.googleusercontent.com/-jg8W5dXgVCY/UUId97hZ0RI/AAAAAAAAAzY/V8yWn7gTs84/s495/2013+-+1
Build and fly IDOL LASER CUT KIT 890mm from Hobby King with 1/2 Glow Engine
https://lh6.googleusercontent.com/-rHtJemmyyZ4/UUIdLfdCelI/AAAAAAAAAy4/HOt51QiHNr8/s495/2013+-+3
Build and fly IDOL LASER CUT KIT 890mm from Hobby King with 1/2 Glow Engine


https://lh3.googleusercontent.com/-FUoPij7aJNg/UUIdHwQlpLI/AAAAAAAAAyo/kjPaCkhVypI/s495/2013+-+4
Build and fly IDOL LASER CUT KIT 890mm from Hobby King with 1/2 Glow Engine
https://lh6.googleusercontent.com/-WZ9JNEm4dZM/UUIdEwDESrI/AAAAAAAAAyc/IEPHUXpVHXI/s495/2013+-+5
Build and fly IDOL LASER CUT KIT 890mm from Hobby King with 1/2 Glow Engine


https://lh6.googleusercontent.com/-bVcxkCDVjck/UUIdBwRg91I/AAAAAAAAAyQ/eHFCXb8amqk/s495/2013+-+6
Build and fly IDOL LASER CUT KIT 890mm from Hobby King with 1/2 Glow Engine
https://lh6.googleusercontent.com/-82PQ9LFPTAQ/UUIc9jFJP1I/AAAAAAAAAx8/bjsRzHkEuI8/s495/2013+-+8
Build and fly IDOL LASER CUT KIT 890mm from Hobby King with 1/2 Glow Engine


https://lh5.googleusercontent.com/-HWknVeHGXA4/UUIc4r_EqLI/AAAAAAAAAxs/ubnY5XlxdW0/s495/2013+-+7
Build and fly IDOL LASER CUT KIT 890mm from Hobby King with 1/2 Glow Engine
« Last Edit: March 15, 2013, 08:43:09 AM by sundaram » Logged



Read
« Reply #36 on: March 15, 2013, 06:31:00 AM »
sanjayrai55
Plane Lover
Forum Hero

*****

Reputation Power: 85
sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.
Offline Offline

City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 8337
Join Date: Dec, 2011

Don't wake a Tiger until you've factored the teeth



Beautiful  Thumbs Up

Looks ready to tke off from Param's hand  Hats Off
Logged



Read
« Reply #37 on: March 15, 2013, 06:57:32 AM »
arun.sreelakam
Coloring my Dreams...
Plane Lover
Forum Hero

*****

Reputation Power: 12
arun.sreelakam has no influence.
Offline Offline

City: palakkad
State: Kerala
RC Skills: Advanced
Posts: 1678
Join Date: Sep, 2012

Fly High



Nice looking bird and beautifull Build sir. Shocked
 Clap Clap
I wonder why you left a small portion uncovered? just under the nose part? Wink
Logged

Turnigy i10|Flysky 9xb|Hoverfly quadcopter|Arduflyer apm 2.5 with gps|Pixhawk|Homemade micro night vapour|Homemade ornithopter(in progress)| Reptile Quad with Gopro Brushless gimbal | Naza v2| APM 2.6 with GPS | Micro quad self made | FrSky| v911 Helis | 1200mm Hexacopter with 5d gimbal | 1300mm x8 With Red Gimbal | 1000mm Octo|


Read
« Reply #38 on: March 15, 2013, 08:49:20 AM »
sundaram
FAN OF FPV FLYING, AERIAL PHOTOGRAPHY & MICRO RC
Plane Lover
Forum Hero

*****

Reputation Power: 38
sundaram is working their way up.sundaram is working their way up.sundaram is working their way up.
Offline Offline

City: Gandhinagar
State: Gujarat
RC Skills: Advanced
Posts: 3407
Join Date: Nov, 2009



Thankyou Sanjay Sir, Arun

I left it uncovered under the nose basically because of two reasons.

one is that the sealing iron was not reaching inside being narrow.

second it was easy for the routing of fuel line. fuel tank is right above it with air vent pipe coming down from those holes any over flow while filling is going to make it soggy there.  Grin
Logged



Read
« Reply #39 on: March 15, 2013, 09:14:22 AM »
sundaram
FAN OF FPV FLYING, AERIAL PHOTOGRAPHY & MICRO RC
Plane Lover
Forum Hero

*****

Reputation Power: 38
sundaram is working their way up.sundaram is working their way up.sundaram is working their way up.
Offline Offline

City: Gandhinagar
State: Gujarat
RC Skills: Advanced
Posts: 3407
Join Date: Nov, 2009



Over all AUW with fuel and BEC 2S lipo is 540 Gms.

with an expected thrust of 250 to 300 gms it is around 0.5 power to weight ratio. Should definitely  fly as long as it can glide well.

If this Balsa Glider at 28.5 Oz (800 gms ) can fly with a cox 0.49 and a 6x3 prop I am hopping mine will definitely paint sky red.  Grin



Again this AXN at 780 gms

« Last Edit: March 15, 2013, 09:46:29 AM by sundaram » Logged



Read
« Reply #40 on: April 05, 2013, 10:53:19 PM »
sundaram
FAN OF FPV FLYING, AERIAL PHOTOGRAPHY & MICRO RC
Plane Lover
Forum Hero

*****

Reputation Power: 38
sundaram is working their way up.sundaram is working their way up.sundaram is working their way up.
Offline Offline

City: Gandhinagar
State: Gujarat
RC Skills: Advanced
Posts: 3407
Join Date: Nov, 2009



The first test flight not good as extremely tail heavy at CG 35% and windy it was always pitching up at the slightest of gust and it was extremely windy.



So now the Lipo has been moved to right next to engine forward. and CG moved forward to 20% now.

watch for next flight test.
« Last Edit: April 05, 2013, 11:08:51 PM by sundaram » Logged



Read
« Reply #41 on: April 08, 2013, 07:44:39 PM »
sundaram
FAN OF FPV FLYING, AERIAL PHOTOGRAPHY & MICRO RC
Plane Lover
Forum Hero

*****

Reputation Power: 38
sundaram is working their way up.sundaram is working their way up.sundaram is working their way up.
Offline Offline

City: Gandhinagar
State: Gujarat
RC Skills: Advanced
Posts: 3407
Join Date: Nov, 2009





Quick flight video of  Idol Laser for Sweepstakes


Logged



Read
« Reply #42 on: April 08, 2013, 09:19:56 PM »
K K Iyer
Global Moderator
Forum Hero
*****

Reputation Power: 61
K K Iyer is a rising star!K K Iyer is a rising star!K K Iyer is a rising star!K K Iyer is a rising star!K K Iyer is a rising star!K K Iyer is a rising star!
Offline Offline

City: Indore
State: Madhya Pradesh
RC Skills: Intermediate
Posts: 5180
Join Date: Jan, 2012



Lovely sound. But it sounds over propped
Logged


Read
« Reply #43 on: April 08, 2013, 11:41:37 PM »
sundaram
FAN OF FPV FLYING, AERIAL PHOTOGRAPHY & MICRO RC
Plane Lover
Forum Hero

*****

Reputation Power: 38
sundaram is working their way up.sundaram is working their way up.sundaram is working their way up.
Offline Offline

City: Gandhinagar
State: Gujarat
RC Skills: Advanced
Posts: 3407
Join Date: Nov, 2009



 6x4 was surely on the higher side. 5x4 would have been perfect .. since the ground was small it was flying on controlled throttle.
Logged



Read
« Reply #44 on: April 09, 2013, 09:57:22 AM »
sanjayrai55
Plane Lover
Forum Hero

*****

Reputation Power: 85
sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.
Offline Offline

City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 8337
Join Date: Dec, 2011

Don't wake a Tiger until you've factored the teeth



Great flight Sandy boss  Thumbs Up

Took a long taxi for take-off!
Logged



Read
« Reply #45 on: April 09, 2013, 10:11:40 AM »
sundaram
FAN OF FPV FLYING, AERIAL PHOTOGRAPHY & MICRO RC
Plane Lover
Forum Hero

*****

Reputation Power: 38
sundaram is working their way up.sundaram is working their way up.sundaram is working their way up.
Offline Offline

City: Gandhinagar
State: Gujarat
RC Skills: Advanced
Posts: 3407
Join Date: Nov, 2009



Thankyou Sir

The ground has lot of grass and since wheels are small it was not attaining speed easily. In tarmac it has a shorter run.

A perfect model for Param. Has great inherent stability, literally uncrashable.  Unless he deliberately noses it down it is not going to crash at all and on throttle cut just glides beautifully.
« Last Edit: April 09, 2013, 10:23:40 AM by sundaram » Logged



Read
« Reply #46 on: May 10, 2013, 01:28:53 PM »
sundaram
FAN OF FPV FLYING, AERIAL PHOTOGRAPHY & MICRO RC
Plane Lover
Forum Hero

*****

Reputation Power: 38
sundaram is working their way up.sundaram is working their way up.sundaram is working their way up.
Offline Offline

City: Gandhinagar
State: Gujarat
RC Skills: Advanced
Posts: 3407
Join Date: Nov, 2009



This Sunday Fun Flying with it.

The grownup boys having fun with while Param for whom it was made is in the background all huffed and puffed.

Logged



Read
« Reply #47 on: May 10, 2013, 02:04:12 PM »
VC
Boat Lover
Forum Hero

*****

Reputation Power: 64
VC is a rising star!VC is a rising star!VC is a rising star!VC is a rising star!VC is a rising star!VC is a rising star!
Offline Offline

City: Guwahati
State: Assam
RC Skills: Beginner
Posts: 5598
Join Date: Nov, 2009

L'enfant Terrible du RCIndia



Wow! How did I miss this thread? No wonder that I was not able to comprehend while you were talking about the 'Idol'. Lucky to have seen the actual model. Well done Sir!
Logged

Growing old is mandatory, growing up is optional!


Read
« Reply #48 on: May 10, 2013, 03:33:06 PM »
sundaram
FAN OF FPV FLYING, AERIAL PHOTOGRAPHY & MICRO RC
Plane Lover
Forum Hero

*****

Reputation Power: 38
sundaram is working their way up.sundaram is working their way up.sundaram is working their way up.
Offline Offline

City: Gandhinagar
State: Gujarat
RC Skills: Advanced
Posts: 3407
Join Date: Nov, 2009



Thankyou VC

Some still Photos

https://lh5.googleusercontent.com/--4ONNq-p09M/UYyix5u_IWI/AAAAAAAABKQ/H2W26MQtSS8/w900-h675-no/2013+-+7
Build and fly IDOL LASER CUT KIT 890mm from Hobby King with 1/2 Glow Engine

https://lh6.googleusercontent.com/-nO0eTOHkLGg/UYyix08cYwI/AAAAAAAABKY/dUpq1w_aw2w/w900-h675-no/2013+-+8
Build and fly IDOL LASER CUT KIT 890mm from Hobby King with 1/2 Glow Engine

https://lh3.googleusercontent.com/-sWuAabP6kbU/UYyix8HZ9PI/AAAAAAAABKg/XjzteM1XMpc/w900-h675-no/2013+-+9
Build and fly IDOL LASER CUT KIT 890mm from Hobby King with 1/2 Glow Engine
Logged



Read
« Reply #49 on: May 10, 2013, 03:41:22 PM »
rcpilotacro
Global Moderator
Forum Hero

*****

Reputation Power: 58
rcpilotacro is on the verge of being accepted.rcpilotacro is on the verge of being accepted.rcpilotacro is on the verge of being accepted.rcpilotacro is on the verge of being accepted.rcpilotacro is on the verge of being accepted.
Offline Offline

City: Delhi
State: Delhi
RC Skills: Advanced
Posts: 5041
Join Date: Nov, 2010

Practice, and only Practice will make you perfect



i see me buzzing the control tower in the video, i wish it had more power for some loops and Barrels
Logged

Gusty's Hangar and Introduction.

A Good pilot will practice until he gets it right,
A Great pilot will practice until he can’t get it wrong.


Pages: 1 [2] 3  All   Go Up
Jump to:

Related Topics
Subject Started by Replies Views Last post
Hobby King / Hobby City 450 Helicopter Configuration. « 1 2 ... 5 6 »
Helis
vinay 132 91138 Last post February 23, 2013, 12:54:11 AM
by samlikespad
Hobby King is 'Copy King' - This time Funjet « 1 2 3  All »
Electric Planes
ujjwaana 52 61998 Last post June 04, 2015, 12:20:57 AM
by Rcjabalpur
Build and fly Laser cut Stick Kit from HK with AP O.15 Glow Engine « 1 2  All »
Gas/Glow/Nitro Planes
PARAM 39 33759 Last post June 24, 2018, 10:13:06 PM
by prabu85
Hobby King Venus 0.46 Glow Trainer Plane
For Sale
kausha 6 4352 Last post September 05, 2013, 08:58:40 PM
by KIRAN_93
How to build the Hobby King Venus glow plane ?
Beginners Zone
kausha 6 5185 Last post November 03, 2013, 04:50:42 PM
by kausha
