Curare 20
Tweet
Thanks to a gentleman in Bangalore, Mr. Lingaraj, I have got hold of an incomplete MK Models ( Kato) kit of Hanno Prettner's legendary Curare, in a 20 size
It's a very old kit, and a fair number of parts are missing - fortunately mostly balsa/ply which can be replicated
About Prettner -
http://www.rcindia.org/rc-general-topics/hanno-prettner-living-legend-of-rc/msg297475/#new
Logged
Sanjay - Gravity is my enemy
http://www.rcindia.org/rc-people/builds-i-have-posted-on-rci/
«
Reply #1 on:
January 26, 2019, 05:16:59 AM »
sanjayrai55
Plane Lover
Forum Hero
Reputation Power: 85
Offline
City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 8339
Join Date: Dec, 2011
Don't wake a Tiger until you've factored the teeth
Re: Curare 20
Curare 20
Logged
Sanjay - Gravity is my enemy
http://www.rcindia.org/rc-people/builds-i-have-posted-on-rci/
«
Reply #2 on:
January 26, 2019, 05:18:47 AM »
sanjayrai55
Plane Lover
Forum Hero
Reputation Power: 85
Offline
City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 8339
Join Date: Dec, 2011
Don't wake a Tiger until you've factored the teeth
Re: Curare 20
Plans from Outer Zone
Curare 20
Curare 20
Logged
Sanjay - Gravity is my enemy
http://www.rcindia.org/rc-people/builds-i-have-posted-on-rci/
«
Reply #3 on:
January 26, 2019, 05:20:07 AM »
sanjayrai55
Plane Lover
Forum Hero
Reputation Power: 85
Offline
City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 8339
Join Date: Dec, 2011
Don't wake a Tiger until you've factored the teeth
Re: Curare 20
Will be using an ASP 25 Glow Engine
Curare 20
Curare 20
Logged
Sanjay - Gravity is my enemy
http://www.rcindia.org/rc-people/builds-i-have-posted-on-rci/
«
Reply #4 on:
January 26, 2019, 05:23:34 AM »
sanjayrai55
Plane Lover
Forum Hero
Reputation Power: 85
Offline
City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 8339
Join Date: Dec, 2011
Don't wake a Tiger until you've factored the teeth
Re: Curare 20

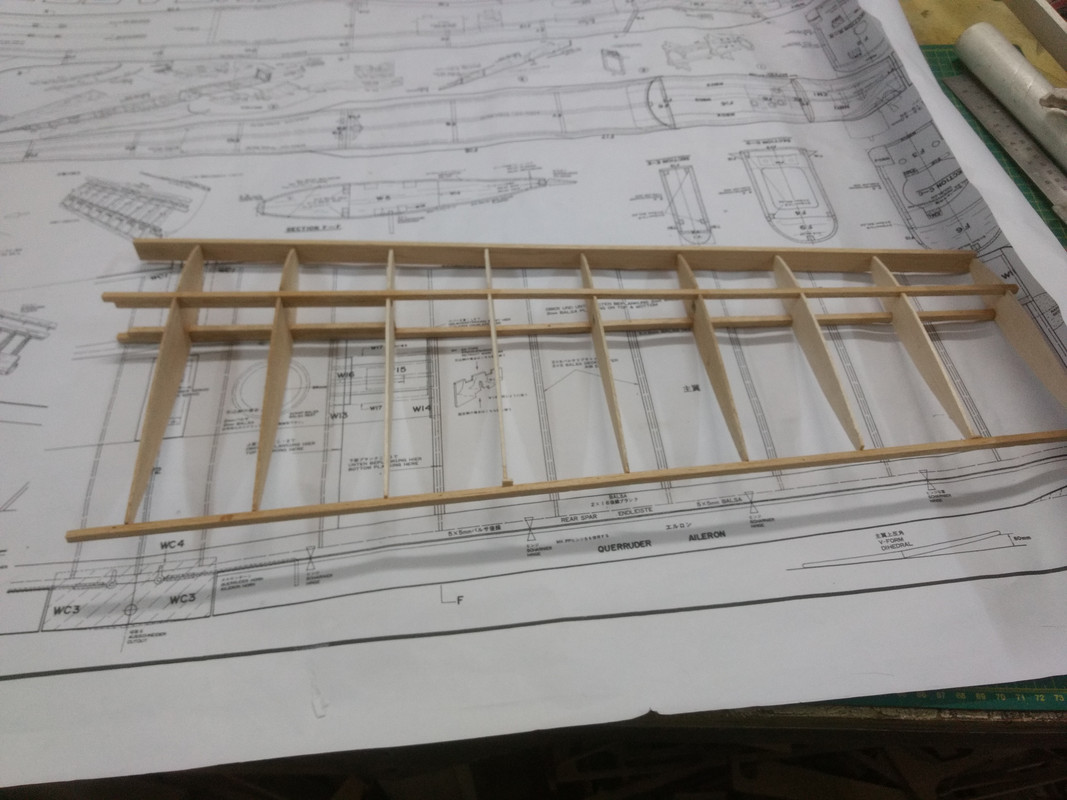

The plans only have the right wing, so, after 44 years I did some GT (Glass Tracing). Last done to copy Engineering Drawing Assignments in 1974-5
Curare 20
Curare 20
Now I've traced and pencilled a left wing on the reverse side of the plans ( a mirror image, so to speak)
Logged
Sanjay - Gravity is my enemy
http://www.rcindia.org/rc-people/builds-i-have-posted-on-rci/
«
Reply #5 on:
February 01, 2019, 05:53:37 PM »
sanjayrai55
Plane Lover
Forum Hero
Reputation Power: 85
Offline
City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 8339
Join Date: Dec, 2011
Don't wake a Tiger until you've factored the teeth
Re: Curare 20
Curare 20
Logged
Sanjay - Gravity is my enemy
http://www.rcindia.org/rc-people/builds-i-have-posted-on-rci/
«
Reply #6 on:
February 01, 2019, 05:54:14 PM »
sanjayrai55
Plane Lover
Forum Hero
Reputation Power: 85
Offline
City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 8339
Join Date: Dec, 2011
Don't wake a Tiger until you've factored the teeth
Re: Curare 20
Curare 20
Logged
Sanjay - Gravity is my enemy
http://www.rcindia.org/rc-people/builds-i-have-posted-on-rci/
«
Reply #7 on:
February 01, 2019, 05:54:58 PM »
sanjayrai55
Plane Lover
Forum Hero
Reputation Power: 85
Offline
City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 8339
Join Date: Dec, 2011
Don't wake a Tiger until you've factored the teeth
Re: Curare 20
Curare 20
Logged
Sanjay - Gravity is my enemy
http://www.rcindia.org/rc-people/builds-i-have-posted-on-rci/
«
Reply #8 on:
February 01, 2019, 06:38:29 PM »
K K Iyer
Global Moderator
Forum Hero
Reputation Power: 61
Offline
City: Indore
State: Madhya Pradesh
RC Skills: Intermediate
Posts: 5199
Join Date: Jan, 2012
Re: Curare 20
@sanjayrai55,
Sir,
Guess the dark wood is from the kit and the whiter pieces are new, right?
Is the original material balsa?
Regards
Logged
«
Reply #9 on:
February 01, 2019, 07:13:15 PM »
sanjayrai55
Plane Lover
Forum Hero
Reputation Power: 85
Offline
City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 8339
Join Date: Dec, 2011
Don't wake a Tiger until you've factored the teeth
Re: Curare 20
Quote from: K K Iyer on February 01, 2019, 06:38:29 PM
@sanjayrai55,
Sir,
Guess the dark wood is from the kit and the whiter pieces are new, right?
Is the original material balsa?
Regards
Correct on both counts sir
Logged
Sanjay - Gravity is my enemy
http://www.rcindia.org/rc-people/builds-i-have-posted-on-rci/
«
Reply #10 on:
February 02, 2019, 04:50:51 AM »
sanjayrai55
Plane Lover
Forum Hero
Reputation Power: 85
Offline
City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 8339
Join Date: Dec, 2011
Don't wake a Tiger until you've factored the teeth
Re: Curare 20
I have had very limited exposure to quality kits. In the late 80's, I had 2 OK Model (Pilot) kits, and a few years ago a Great Planes kit. This is my first MK Kato kit
I must say the balsa quality is exceptional! I have encountered 4 different grades of balsa, selected for the application. Even the ply, while being light, is extraordinarily hard. Brilliant kit maker, Kato
Logged
Sanjay - Gravity is my enemy
http://www.rcindia.org/rc-people/builds-i-have-posted-on-rci/
«
Reply #11 on:
February 02, 2019, 07:08:50 PM »
sanjayrai55
Plane Lover
Forum Hero
Reputation Power: 85
Offline
City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 8339
Join Date: Dec, 2011
Don't wake a Tiger until you've factored the teeth
Re: Curare 20
Curare 20
Logged
Sanjay - Gravity is my enemy
http://www.rcindia.org/rc-people/builds-i-have-posted-on-rci/
«
Reply #12 on:
February 02, 2019, 07:09:39 PM »
sanjayrai55
Plane Lover
Forum Hero
Reputation Power: 85
Offline
City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 8339
Join Date: Dec, 2011
Don't wake a Tiger until you've factored the teeth
Re: Curare 20
Curare 20
Curare 20
Logged
Sanjay - Gravity is my enemy
http://www.rcindia.org/rc-people/builds-i-have-posted-on-rci/
«
Reply #13 on:
February 05, 2019, 11:00:12 AM »
sanjayrai55
Plane Lover
Forum Hero
Reputation Power: 85
Offline
City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 8339
Join Date: Dec, 2011
Don't wake a Tiger until you've factored the teeth
Re: Curare 20
Wing ready for covering
Curare 20
Logged
Sanjay - Gravity is my enemy
http://www.rcindia.org/rc-people/builds-i-have-posted-on-rci/
«
Reply #14 on:
February 05, 2019, 11:01:46 AM »
sanjayrai55
Plane Lover
Forum Hero
Reputation Power: 85
Offline
City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 8339
Join Date: Dec, 2011
Don't wake a Tiger until you've factored the teeth
Re: Curare 20
Since I didn't have 15 mm thick balsa, made the wingtips from 3 different sheets glued together
Curare 20
Logged
Sanjay - Gravity is my enemy
http://www.rcindia.org/rc-people/builds-i-have-posted-on-rci/
«
Reply #15 on:
February 07, 2019, 04:35:42 PM »
sanjayrai55
Plane Lover
Forum Hero
Reputation Power: 85
Offline
City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 8339
Join Date: Dec, 2011
Don't wake a Tiger until you've factored the teeth
Re: Curare 20
The horizontal stab has an anhedral!
Curare 20
Logged
Sanjay - Gravity is my enemy
http://www.rcindia.org/rc-people/builds-i-have-posted-on-rci/
«
Reply #16 on:
February 07, 2019, 04:36:43 PM »
sanjayrai55
Plane Lover
Forum Hero
Reputation Power: 85
Offline
City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 8339
Join Date: Dec, 2011
Don't wake a Tiger until you've factored the teeth
Re: Curare 20
Started the fuselage
Curare 20
Logged
Sanjay - Gravity is my enemy
http://www.rcindia.org/rc-people/builds-i-have-posted-on-rci/
«
Reply #17 on:
February 07, 2019, 06:29:12 PM »
Mehul Anand
Plane Lover
Senior Member
Reputation Power: 4
Offline
City: Ranchi
State: Jharkhand
RC Skills: Beginner
Posts: 217
Join Date: Feb, 2018
Re: Curare 20
just another awesome build by Sanjay sir!!
By the way how would anhedral stab affect how the plane flies??
Logged
«
Reply #18 on:
February 07, 2019, 07:18:54 PM »
sanjayrai55
Plane Lover
Forum Hero
Reputation Power: 85
Offline
City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 8339
Join Date: Dec, 2011
Don't wake a Tiger until you've factored the teeth
Re: Curare 20
I myself am not too sure
Looks cool, and Hanno Prettner said to use it
The most logical explanation I found was in RC Universe:
RE: anhedral on horizontal stab
An engineer once told me that the anhedral on the F-4 tail was to help with low-speed yaw stability. The tail of the F-4, like most airplanes, generates negative lift, so anhedral on the horizontal tail would actually work like dihedral for a wing (it's stabilizing). This seems to imply there is a tradeoff with yaw stability while inverted, which of course wouldn't be a problem for the F-4.
As for RC aerobatic airplanes, especially so-called 3D, I doubt it has any benefit. The anhedral adds effective side area to the tail, which is the same as adding more fin area. It does add it down low, however, which might help knife-edge tracking if it is done properly, but that's only theory, and I believe that was the thinking behind the Curare tail. I remember some discussion about it in the '70s (or was it the '80s?). It seemed to work, but then so do many other designs without anhedral. You would probably have to be an aerodynamicist or an avid experimenter to design it so there is any discernible benefit.
If you think it looks cool, a little bit probably will not hurt. Or if you think you need to redistribute the vertical stabilization area lower, it might help.
As for adding maximim side lift capbility, there would be no benefit at all, since adding tail area is stabilizing. Good knife-edge lift has a lot to do with the proper balance between area ahead of the CG and area behind the CG. All else equal, adding effective fin area, without changing anything else, will make it harder for the rudder to yaw the airplane and generate side-lift. Also, the length of each horizontal stabilizer/elevator would have to be multiplied by the secant of the anhedral angle to keep the same pitch effectiveness, which would of course increase weight slightly.
Logged
Sanjay - Gravity is my enemy
http://www.rcindia.org/rc-people/builds-i-have-posted-on-rci/
«
Reply #19 on:
February 07, 2019, 07:19:47 PM »
sanjayrai55
Plane Lover
Forum Hero
Reputation Power: 85
Offline
City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 8339
Join Date: Dec, 2011
Don't wake a Tiger until you've factored the teeth
Re: Curare 20
However for my (very limited) flying skills, I don't think I'll be testing, or valuating it's use
Logged
Sanjay - Gravity is my enemy
http://www.rcindia.org/rc-people/builds-i-have-posted-on-rci/
«
Reply #20 on:
February 07, 2019, 08:55:52 PM »
K K Iyer
Global Moderator
Forum Hero
Reputation Power: 61
Offline
City: Indore
State: Madhya Pradesh
RC Skills: Intermediate
Posts: 5199
Join Date: Jan, 2012
Re: Curare 20
Quote from: sanjayrai55 on February 07, 2019, 04:35:42 PM
The horizontal stab has an anhedral!
Curare 20
Sir that anhedral stab is the
signature
of the Curare.
With a flat stab it’d no longer be a Curare!
I’m glad you had one of the other unique elements - the thick fin leading edge.
Hope you have the chin block too...
Regards
Logged
«
Reply #21 on:
February 07, 2019, 09:31:13 PM »
manojswizera
Plane Lover
Forum Hero
Reputation Power: 18
Offline
City: AURANGABAD
State: Maharashtra
RC Skills: Beginner
Posts: 1336
Join Date: Oct, 2011
Re: Curare 20
great going sanjay sir.
Logged
Russ-40 Trainer, Mr.moss, Pushler, Skysurfer, Mugi , F-22, Red swan, Xtra-300, redfury, flying mantaray.
«
Reply #22 on:
February 08, 2019, 04:28:50 AM »
sanjayrai55
Plane Lover
Forum Hero
Reputation Power: 85
Offline
City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 8339
Join Date: Dec, 2011
Don't wake a Tiger until you've factored the teeth
Re: Curare 20
Thanks Iyer sir; yes, the chin block and thick fin LE will soon make their appearance
Thanks Manoj. You are always encouraging
Right now I'm in an intense struggle: the design called for an oval fuel tank of 150 cc capacity, with the larger axis horizontal. Can get no such tank, nearest is a rectangular 180 cc. To fit that, there is fouling with the wooden engine bearers. So I've decided to use a Glass Filled Nylon mount. Which brings it's own complications in installing - tight space. I also want to use a steerable nose wheel against the fixed one supplied
Logged
Sanjay - Gravity is my enemy
http://www.rcindia.org/rc-people/builds-i-have-posted-on-rci/
«
Reply #23 on:
February 08, 2019, 08:15:47 PM »
K K Iyer
Global Moderator
Forum Hero
Reputation Power: 61
Offline
City: Indore
State: Madhya Pradesh
RC Skills: Intermediate
Posts: 5199
Join Date: Jan, 2012
Re: Curare 20
Sir,
A few suggestions
1. If you think 90cc will suffice, check out MD rum ka bachcha. I’ve been considering one for a 10 size model. It’s quite oval.
2. If you omit EM1 and EM2, there should be enough space for a round or square section tank. Without printing the plan, I’m not able to estimate the available space. Pl let me know. Then I’ll see if I have something suitable.
3. If possible, skip the steerable nosewheel. On such a small streamlined model it’s not worth the effort
4. If going radial, please finalise the holes in the firewall and mount the flanged nuts before starting the fuselage. The nose is complete on mine, and the flanged nuts epoxied to the back of the firewall. No way to make matching holes in the radial mount. I’m not able to bring myself to cut the cowl free! See pic.
5. If you don’t have 4 flanged nuts and matching bolts, let me know. I think I got some in 2006!
Re: Curare 20
(58.84 KB, 800x600 - viewed 4014 times.)
Logged
«
Reply #24 on:
February 08, 2019, 08:23:50 PM »
sanjayrai55
Plane Lover
Forum Hero
Reputation Power: 85
Offline
City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 8339
Join Date: Dec, 2011
Don't wake a Tiger until you've factored the teeth
Re: Re: Curare 20
Quote from: sanjayrai55 on February 07, 2019, 04:36:43 PM
Started the fuselage
Curare 20
Iyer sir, the picture doesn't tell the whole story, but the FW is already glued in place, with blind nuts fitted. The Engine mount is also fitted, and the Sullivan flex 180 cc tank fits fine. 90 cc is too small for a 25 Engine. Just that everything is very cramped.
The cowl blocks will need multiple holes for tightening the Engine and mount bolts, and the exhaust bolts. Also, I'll be keeping the Engine upright, not at 90 degrees.
Regarding the nose gear, I'm still deciding.
Sent from my Moto G (4) using Tapatalk
Logged
Sanjay - Gravity is my enemy
http://www.rcindia.org/rc-people/builds-i-have-posted-on-rci/
Pages: [
1
]
2
3
4
All
Go Up
RC India
RC Models
Gas/Glow/Nitro Planes
Topic:
Curare 20
« previous
next »
Jump to:
Please select a destination:
-----------------------------
General Topics
-----------------------------
=> Chatter Zone
=> Beginners Zone
=> RC Events
=> RC People
=> RC India Forum
-----------------------------
RC Models
-----------------------------
=> Electric Planes
=> Helis
=> Cars
=> Kites, Trains, Free Flight and All Others
-----------------------------
RC Equipments
-----------------------------
=> Tools, Materials and Building Techniques
=> Radios and Receivers
=> Electric Power
=> Fuel and Engines
=> Batteries and Chargers
=> Servos, Gyros and All Electronics
-----------------------------
RC Models
-----------------------------
=> Gas/Glow/Nitro Planes
-----------------------------
RC Baazar
-----------------------------
=> For Sale
=> Wanted
-----------------------------
General Topics
-----------------------------
=> RC Outlets and Resellers
-----------------------------
RC Baazar
-----------------------------
=> Free, Donations and Sweepstakes
=> Deals and Special Offers
-----------------------------
General Topics
-----------------------------
=> RC Locations and Clubs
=> RC Maneuvers and Skills
-----------------------------
RC Models
-----------------------------
=> Self-designed, DIY and College Projects
-----------------------------
General Topics
-----------------------------
=> RC General Topics
-----------------------------
RC Baazar
-----------------------------
===> For Sale - Completed
===> Wanted - Completed
-----------------------------
RC Models
-----------------------------
=> Boats
=> Multirotors
Related Topics
Subject
Started by
Replies
Views
Last post
build log: CURARE .40
«
1
2
All
»
Gas/Glow/Nitro Planes
AEROVISHWA
41
34813
May 01, 2015, 06:38:25 PM
by
K K Iyer
60% Curare Foamy
Electric Planes
K K Iyer
17
16935
May 04, 2015, 09:05:54 PM
by
saikat
Loading...
