Specs:

Wingspan   50 in   1270 mm
Wing Area   540 sq in   34.8 dmē
Length   47 in   1194 mm
Flying Weight   5.5 - 6 lb   2500 - 2720g
Wing Loading   23 - 25 oz/sq ft   70 -76 g/dmē
Radio Required   4-Channel (not included)
Engine Required   2-Stroke .40 - .60 (6.5 - 10 cc) (not included)
Logged
Sanjay - Gravity is my enemy


Read
« Reply #1 on: November 04, 2018, 04:46:33 AM »
sanjayrai55
Plane Lover
Forum Hero

*****

Reputation Power: 80
sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.
Offline Offline

City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 7852
Join Date: Dec, 2011

Don't wake a Tiger until you've factored the teeth
I got the 3 plastic parts - Turtle Deck, Canopy, Cowl from USA. Rest is scratch built here

The wing is foam core with balsa sheeting. Cores were cut with hot wire

https://i.postimg.cc/8zXxR0x8/IMG-20181028-165344875.jpg
Sig Kougar( modified)


https://i.postimg.cc/8zXxR0x8/IMG-20181028-165344875.jpg
Sig Kougar( modified)
Logged
Sanjay - Gravity is my enemy


Read
« Reply #2 on: November 04, 2018, 04:47:57 AM »
sanjayrai55
Plane Lover
Forum Hero

*****

Reputation Power: 80
sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.
Offline Offline

City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 7852
Join Date: Dec, 2011

Don't wake a Tiger until you've factored the teeth

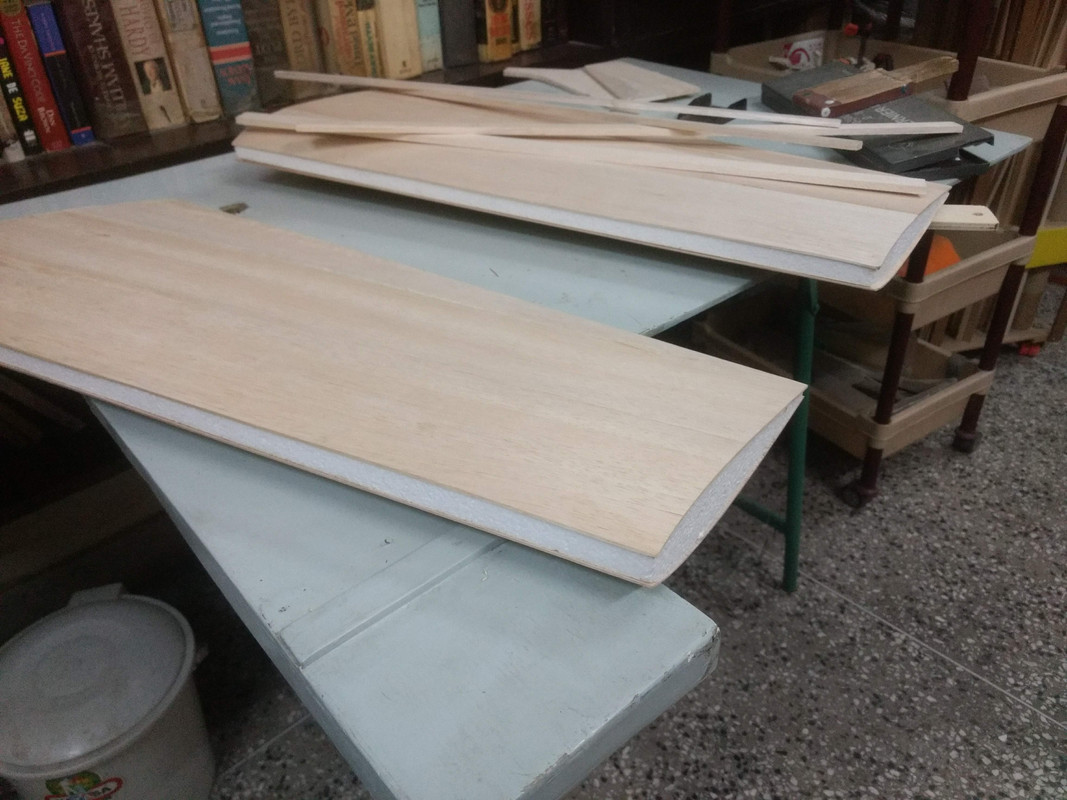

https://i.postimg.cc/Rhxk3JyN/IMG-20181030-183659271.jpg
Sig Kougar( modified)


LE & TE from 6 mm balsa

https://i.postimg.cc/1zg2JKZ8/IMG-20181031-182835315.jpg
Sig Kougar( modified)
Logged
Sanjay - Gravity is my enemy


Read
« Reply #3 on: November 04, 2018, 04:50:02 AM »
sanjayrai55
Plane Lover
Forum Hero

*****

Reputation Power: 80
sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.
Offline Offline

City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 7852
Join Date: Dec, 2011

Don't wake a Tiger until you've factored the teeth
https://i.postimg.cc/sDckXXcg/IMG-20181101-122948721.jpg
Sig Kougar( modified)


https://i.postimg.cc/0NbRhs72/IMG-20181101-122955307.jpg
Sig Kougar( modified)



This model is being built without plans!

Working with the build manual, and some photos/details found on RC Universe
Logged
Sanjay - Gravity is my enemy


Read
« Reply #4 on: November 04, 2018, 04:51:29 AM »
sanjayrai55
Plane Lover
Forum Hero

*****

Reputation Power: 80
sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.
Offline Offline

City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 7852
Join Date: Dec, 2011

Don't wake a Tiger until you've factored the teeth
Wing sections joined

https://i.postimg.cc/tgLffVX2/IMG-20181101-131633935.jpg
Sig Kougar( modified)


Centre portion reinforced with Glass & Araldite

https://i.postimg.cc/vByL2Cq2/IMG-20181103-173624321.jpg
Sig Kougar( modified)
Logged
Sanjay - Gravity is my enemy


Read
« Reply #5 on: November 04, 2018, 04:52:16 AM »
sanjayrai55
Plane Lover
Forum Hero

*****

Reputation Power: 80
sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.
Offline Offline

City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 7852
Join Date: Dec, 2011

Don't wake a Tiger until you've factored the teeth
Fuse started

https://i.postimg.cc/VNnWRzRb/IMG-20181103-173607041.jpg
Sig Kougar( modified)
Logged
Sanjay - Gravity is my enemy


Read
« Reply #6 on: November 04, 2018, 04:53:37 AM »
sanjayrai55
Plane Lover
Forum Hero

*****

Reputation Power: 80
sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.
Offline Offline

City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 7852
Join Date: Dec, 2011

Don't wake a Tiger until you've factored the teeth
Fuselage is in Corro, wings are foam with 1.5 mm balsa sheeting, and tail feathers are 6 mm Balsa

https://i.postimg.cc/SxxwzhT7/IMG-20181030-164044950.jpg
Sig Kougar( modified)
Logged
Sanjay - Gravity is my enemy


Read
« Reply #7 on: November 04, 2018, 05:14:54 PM »
Mehul Anand
Plane Lover
Senior Member
***

Reputation Power: 4
Mehul Anand has no influence.
Offline Offline

City: Ranchi
State: Jharkhand
RC Skills: Beginner
Posts: 217
Join Date: Feb, 2018
Looking neat and great sir!!
Logged


Read
« Reply #8 on: November 05, 2018, 05:04:27 AM »
sanjayrai55
Plane Lover
Forum Hero

*****

Reputation Power: 80
sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.
Offline Offline

City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 7852
Join Date: Dec, 2011

Don't wake a Tiger until you've factored the teeth
Thanks Mehul. Still a long way to go!
Logged
Sanjay - Gravity is my enemy


Read
« Reply #9 on: November 05, 2018, 07:15:31 PM »
sanjayrai55
Plane Lover
Forum Hero

*****

Reputation Power: 80
sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.
Offline Offline

City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 7852
Join Date: Dec, 2011

Don't wake a Tiger until you've factored the teeth
I considered using 3 mm balsa sheeting for the fuselage. But after some consideration, I realised it would add about 150 grams, a lot more work, and Corro would work fine

Plus, if I don't use some corro, it would be OoC  Wink
Logged
Sanjay - Gravity is my enemy


Read
« Reply #10 on: November 05, 2018, 09:33:46 PM »
prabal276
In the Air
Plane Lover
Forum Hero

*****

Reputation Power: 15
prabal276 has no influence.
Offline Offline

City: Delhi
State: Delhi
RC Skills: Intermediate
Posts: 1408
Join Date: Mar, 2013

One step at a time :)
What is OOC?  Grin
Great build sir!
-Prabal
Logged
Student Pilot.
Railfan, Avgeek!
Along with RC Planes, I model Indian Railways in Paper.
https://www.youtube.com/channel/UCroDDsdqE-w2CvteWbPGJ-A


Read
« Reply #11 on: November 06, 2018, 01:19:24 AM »
K K Iyer
Global Moderator
Forum Hero
*****

Reputation Power: 53
K K Iyer is on the verge of being accepted.K K Iyer is on the verge of being accepted.K K Iyer is on the verge of being accepted.K K Iyer is on the verge of being accepted.K K Iyer is on the verge of being accepted.
Offline Offline

City: Indore
State: Madhya Pradesh
RC Skills: Intermediate
Posts: 4454
Join Date: Jan, 2012
Quote from: prabal276 on November 05, 2018, 09:33:46 PM
What is OOC?  Grin
Great build sir!
-Prabal

Haha.
Try to guess.
Here’s a clue. “It has reference to the context”

As soon as I saw Rai saheb’s post, I began waiting to see who would be the first of many puzzled members to seek clarification  Grin

Regards
Logged


Read
« Reply #12 on: November 06, 2018, 10:32:51 AM »
sanjayrai55
Plane Lover
Forum Hero

*****

Reputation Power: 80
sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.
Offline Offline

City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 7852
Join Date: Dec, 2011

Don't wake a Tiger until you've factored the teeth


Haha.
Try to guess.
Here’s a clue. “It has reference to the context”

As soon as I saw Rai saheb’s post, I began waiting to see who would be the first of many puzzled members to seek clarification  Grin

Regards

[/quote]

Lol Iyer sir! Prabal, OoC is "Out of Character"
Logged
Sanjay - Gravity is my enemy


Read
« Reply #13 on: November 06, 2018, 10:34:29 AM »
sanjayrai55
Plane Lover
Forum Hero

*****

Reputation Power: 80
sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.
Offline Offline

City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 7852
Join Date: Dec, 2011

Don't wake a Tiger until you've factored the teeth
Wing is held down by dowels in front, and bolts at the back. Before gluing in the formers I fixed the Dowels, as later there would be no place for the drill once the fuse was assembled

https://i.postimg.cc/HLyyskNP/IMG-20181106-053756890.jpg
Sig Kougar( modified)
Logged
Sanjay - Gravity is my enemy


Read
« Reply #14 on: November 06, 2018, 12:45:01 PM »
gaurang.1972
Plane Lover
Forum Hero
*****

Reputation Power: 13
gaurang.1972 has no influence.
Offline Offline

City: Ahmedabad
State: Gujarat
RC Skills: Intermediate
Posts: 619
Join Date: Dec, 2012
another beautiful creation by sanjay sir Clap Clap
Logged


Read
« Reply #15 on: November 06, 2018, 12:46:20 PM »
sanjayrai55
Plane Lover
Forum Hero

*****

Reputation Power: 80
sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.
Offline Offline

City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 7852
Join Date: Dec, 2011

Don't wake a Tiger until you've factored the teeth
Fuselage assembly

https://i.postimg.cc/Y0qZ3yLc/IMG-20181106-114402158.jpg
Sig Kougar( modified)
Logged
Sanjay - Gravity is my enemy


Read
« Reply #16 on: November 06, 2018, 12:46:55 PM »
sanjayrai55
Plane Lover
Forum Hero

*****

Reputation Power: 80
sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.
Offline Offline

City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 7852
Join Date: Dec, 2011

Don't wake a Tiger until you've factored the teeth
Thanks Gaurang  Grin
Logged
Sanjay - Gravity is my enemy


Read
« Reply #17 on: November 07, 2018, 03:10:18 PM »
Mehul Anand
Plane Lover
Senior Member
***

Reputation Power: 4
Mehul Anand has no influence.
Offline Offline

City: Ranchi
State: Jharkhand
RC Skills: Beginner
Posts: 217
Join Date: Feb, 2018
Sir don't you have many planes, making harder to store more??
Logged


Read
« Reply #18 on: November 07, 2018, 06:03:55 PM »
sanjayrai55
Plane Lover
Forum Hero

*****

Reputation Power: 80
sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.
Offline Offline

City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 7852
Join Date: Dec, 2011

Don't wake a Tiger until you've factored the teeth
Quote from: Mehul Anand on November 07, 2018, 03:10:18 PM
Sir don't you have many planes, making harder to store more??

Lol Cheesy

Actually I give away lots to friends
Logged
Sanjay - Gravity is my enemy


Read
« Reply #19 on: November 07, 2018, 06:51:16 PM »
Mehul Anand
Plane Lover
Senior Member
***

Reputation Power: 4
Mehul Anand has no influence.
Offline Offline

City: Ranchi
State: Jharkhand
RC Skills: Beginner
Posts: 217
Join Date: Feb, 2018
Ooh great for them.
What about hangar rash??
Logged


Read
« Reply #20 on: November 08, 2018, 07:42:11 AM »
sanjayrai55
Plane Lover
Forum Hero

*****

Reputation Power: 80
sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.
Offline Offline

City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 7852
Join Date: Dec, 2011

Don't wake a Tiger until you've factored the teeth
Quote from: Mehul Anand on November 07, 2018, 06:51:16 PM
Ooh great for them.
What about hangar rash??

A part of life

Not dependent so much on quantity of models, but on how they are stored, and how long they remain idle without being flown
Logged
Sanjay - Gravity is my enemy


Read
« Reply #21 on: November 08, 2018, 07:52:21 AM »
sanjayrai55
Plane Lover
Forum Hero

*****

Reputation Power: 80
sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.
Offline Offline

City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 7852
Join Date: Dec, 2011

Don't wake a Tiger until you've factored the teeth
Need to make a balsa piece for the lower fuselage front.

Supposed to be carved out of a 1"block, I fabricated one instead by gluing strips

https://i.postimg.cc/mkN3tdpq/IMG-20181107-170536201.jpg
Sig Kougar( modified)


https://i.postimg.cc/wjbXyRF6/IMG-20181107-183342621.jpg
Sig Kougar( modified)
Logged
Sanjay - Gravity is my enemy


Read
« Reply #22 on: November 08, 2018, 07:53:42 AM »
sanjayrai55
Plane Lover
Forum Hero

*****

Reputation Power: 80
sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.
Offline Offline

City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 7852
Join Date: Dec, 2011

Don't wake a Tiger until you've factored the teeth
Fuelproofing. Ordinary enamel paint

https://i.postimg.cc/KvfrbHM3/IMG-20181108-072125850.jpg
Sig Kougar( modified)


https://i.postimg.cc/VkN9kWqG/IMG-20181108-072131346.jpg
Sig Kougar( modified)
Logged
Sanjay - Gravity is my enemy


Read
« Reply #23 on: November 13, 2018, 05:38:41 AM »
sanjayrai55
Plane Lover
Forum Hero

*****

Reputation Power: 80
sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.
Offline Offline

City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 7852
Join Date: Dec, 2011

Don't wake a Tiger until you've factored the teeth
Wing tips made

Original design suggested carve out of a 1 1/2"X 1 1/2"square bock. I chose to make a fabricated (built-up) tip

https://i.postimg.cc/rwCCFQSD/IMG-20181112-065029557-Copy.jpg
Sig Kougar( modified)
Logged
Sanjay - Gravity is my enemy


Read
« Reply #24 on: November 13, 2018, 05:40:09 AM »
sanjayrai55
Plane Lover
Forum Hero

*****

Reputation Power: 80
sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.sanjayrai55 is a force to reckon with.
Offline Offline

City: Gurgaon
State: Haryana
RC Skills: Intermediate
Posts: 7852
Join Date: Dec, 2011

Don't wake a Tiger until you've factored the teeth
Sanded and fitted ailerons

https://i.postimg.cc/YCkYVYJM/IMG-20181112-171051566-Copy.jpg
Sig Kougar( modified)


https://i.postimg.cc/FHQV42Jt/IMG-20181112-171101396.jpg
Sig Kougar( modified)
Logged
Sanjay - Gravity is my enemy


Pages: [1] 2 3 4  All   Go Up
RC India  RC Models  Gas/Glow/Nitro Planes  Topic: Sig Kougar( modified)
 « previous next »
Jump to:

Related Topics
Subject Started by Replies Views Last post
Best under $16 esc for use with modified cd-rom motors
Electric Power 		NANDU_001 3 3120 Last post October 08, 2011, 09:03:15 PM
by NANDU_001
Modified A-V-Spad « 1 2  All »
Electric Planes 		girishsarwal 43 18142 Last post January 10, 2014, 12:05:20 AM
by tushar112
Sig Four Star 40 (modified) « 1 2 3 4  All »
Gas/Glow/Nitro Planes 		sanjayrai55 85 8147 Last post October 04, 2018, 01:06:01 PM
by sanjayrai55
My New LOSI 5T with 2.0 body, highly modified
Cars 		rishabhbarma 0 831 Last post June 12, 2019, 10:43:47 AM
by rishabhbarma
My Modified Revo 1/6
Cars 		HOBBY CORNER KERALA Kochi 0 649 Last post November 30, 2019, 09:39:51 PM
by HOBBY CORNER KERALA Kochi
Powered by SMF 1.1.21 | SMF © 2015, Simple Machines
Simple Audio Video Embedder 		Realized by Systalent | XHTML | CSS
