« on: September 05, 2014, 07:32:31 PM »
rulingdestiny
Heli Lover
Active Member
**

Reputation Power: 1
rulingdestiny has no influence.
Offline Offline

City: Hyderabad
State: Andhra Pradesh
RC Skills: Beginner
Posts: 3
Join Date: Sep, 2014





  I wanna build a hectocopter with best equipment.

  Can you please suggest me

  Cheap and best  Flight control board with GPS

  Cheap and best  Motors

  Carbon fiber  frame for hectocopter

  I want to build this to carry a HD SLR CAM for Arial photography.

Please give the cost details and their specifications.

Overall how much it will cost to build one


Logged


Read
« Reply #1 on: September 05, 2014, 07:52:58 PM »
yash10896
Car Lover
Forum Veteran

****

Reputation Power: 5
yash10896 has no influence.
Offline Offline

City: Lucknow
State: Uttar Pradesh
RC Skills: Beginner
Posts: 440
Join Date: May, 2013

Nobody is perfect so am i :)


Re:

By hect do mean having six (hex) or eight (octa)  motors???
Logged

Challenges are what make life interesting and overcoming them is what makes life meaningful


Read
« Reply #2 on: September 05, 2014, 08:09:16 PM »
rulingdestiny
Heli Lover
Active Member
**

Reputation Power: 1
rulingdestiny has no influence.
Offline Offline

City: Hyderabad
State: Andhra Pradesh
RC Skills: Beginner
Posts: 3
Join Date: Sep, 2014



Actually I am planning for 6 , what more it will take for 8 except the frame and two additional motors?  will there be any change in flight controller board too?
Logged


Read
« Reply #3 on: September 05, 2014, 08:22:01 PM »
devangflyer
Guest

Go with apm with gps from Chintal ( Rcmumbai ) @ 6200
Dji 2212 motors ( quadkopters ) @ 875
Avionic 20 amp esc ( rcbazaar ) ( Simons firmware ) @ 630
I have no idea about frame
Logged


Read
« Reply #4 on: September 05, 2014, 08:25:50 PM »
devangflyer
Guest

Those motors generate about 850 grams thrust 850 x 6 = 5.1 kg
Logged


Read
« Reply #5 on: September 05, 2014, 08:37:17 PM »
rcrcnitesh
Plane Lover
Forum Hero

*****

Reputation Power: 22
rcrcnitesh barely matters.rcrcnitesh barely matters.
Offline Offline

City: Chennai
State: Tamil Nadu
RC Skills: Beginner
Posts: 2154
Join Date: Jul, 2013



this setup won't lift a slr devang.
For flight controler I would suggest those DJI ones more than any other controler for aerial filming but for sport and fpv flying you should go for apm.
Logged

Maker | Aeromodeller | Teenager


Read
« Reply #6 on: September 05, 2014, 08:39:13 PM »
yash10896
Car Lover
Forum Veteran

****

Reputation Power: 5
yash10896 has no influence.
Offline Offline

City: Lucknow
State: Uttar Pradesh
RC Skills: Beginner
Posts: 440
Join Date: May, 2013

Nobody is perfect so am i :)



from basics:
u can build both hex as well as octa with this flight controller(FC)...
fc-- dji naza m lite for 10k at rcmumbai.com
it supports:
http://static.dji.com/uploads/photos/2014/2/supported_multi_rotor.png
I am planning to build a hectocopter Please help me

no octa here

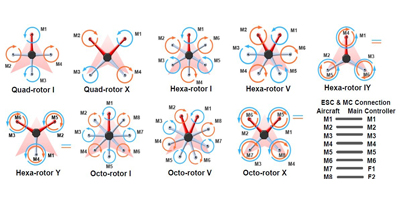

another one is dji naza v2 its i available for 18-19k in india on rcmumbai.com that supports hex as well as octa
http://www.getfpv.com/media/wysiwyg/nazav2/NINE.jpg
I am planning to build a hectocopter Please help me


now motors:
it will depend on which slr you are gonna use... please provide me the exact weight of it with all equipments you are gonna use while in the air

moslty people use t-motors which gives best perfomance but they will cost you around 20-23k for 8 and 16-18k for 6..
next is sunny sky or tarot ones both are good for the price..they will cost you in between 15-17k for 8 and 12-14k for 6

next are esc's:
(electronic speed controller)
stating about 30A simonk esc's they will cost you 7.5k for 8 and 5.5k for 6.. they are available in india..
you can check
quadkopter.com
rcmumbai.com

battery:
as you will use it to shoot videos you will need higher capacity of battery like 5000mah to 6000mah for 15-20min of flighttime which i have seen on quads but in hex or octa they have more motors so i think u can easily achieve 30min flight time in ideal conditions..

gimbal:
to stabilise your dslr from vibration and turns..
it is the most important thing for videography
many people use tarot t2d v2 for go pros but for dslr users you need like dji gimbals which you will need to import or ask chintal(rcmumbai) if he can provide you..
these are best in class ones and they are pretty darn expensive...
for other that are available i dont know about them..maybe seniors can help here...
link:
http://www.dji.com/product/zenmuse-z15-5d

radio:
you should go for fr sky taranis its available for 15k in india and is best in class as compared to most telemetry radios(it provide live data of your multirotor)....

thats all i can remember Cheesy

so anymore help needed contact satya sir(quadkopters.com) or chintal(rcmumbai.com)..
they will provide you best help Smiley

Regards
yash Hats Off


Logged

Challenges are what make life interesting and overcoming them is what makes life meaningful


Read
« Reply #7 on: September 05, 2014, 08:45:52 PM »
yash10896
Car Lover
Forum Veteran

****

Reputation Power: 5
yash10896 has no influence.
Offline Offline

City: Lucknow
State: Uttar Pradesh
RC Skills: Beginner
Posts: 440
Join Date: May, 2013

Nobody is perfect so am i :)



frames:
full carbon fiber frames very light and best for your use:
hex frames tarot:
960:
http://www.foxtechfpv.com/tarot-t960-cf-folding-hexacopter-p-1082.html
810:
http://www.foxtechfpv.com/tarot-t810-cf-folding-hexacopter-p-1043.html

octa 1000 iron man:
http://www.foxtechfpv.com/tarot-iron-man-1000-octorotor-p-919.html

tarot gimbal for dslr: 46k at hong kong shipping extra
http://www.foxtechfpv.com/tarot-5d2-gimbal-full-set-combo-p-1018.html

Regards
yash Hats Off
Logged

Challenges are what make life interesting and overcoming them is what makes life meaningful


Read
« Reply #8 on: September 05, 2014, 08:50:55 PM »
devangflyer
Guest

It's recommended with a 600 size quad , I have used it with my 600 size quad weighing 3 kgs , it will lift it for sure
Logged


Read
« Reply #9 on: September 05, 2014, 08:55:19 PM »
yash10896
Car Lover
Forum Veteran

****

Reputation Power: 5
yash10896 has no influence.
Offline Offline

City: Lucknow
State: Uttar Pradesh
RC Skills: Beginner
Posts: 440
Join Date: May, 2013

Nobody is perfect so am i :)



what???
Logged

Challenges are what make life interesting and overcoming them is what makes life meaningful


Read
« Reply #10 on: September 05, 2014, 09:00:07 PM »
devangflyer
Guest

This is the quad that I bought - http://www.quadkopters.com/product/x600-fiberglass-and-aluminum-frame-with-short-stands/
Check out motor - 2212
Flies perfectly
Logged


Read
« Reply #11 on: September 05, 2014, 09:03:10 PM »
yash10896
Car Lover
Forum Veteran

****

Reputation Power: 5
yash10896 has no influence.
Offline Offline

City: Lucknow
State: Uttar Pradesh
RC Skills: Beginner
Posts: 440
Join Date: May, 2013

Nobody is perfect so am i :)



i think he is into serious stuff like lakh of investment for some serious high quality videography check this thread of iron man 1000 on rcg..this requires lots of serious stuff those aluminium ones are not made for videography with dslr..
http://static.rcgroups.net/forums/attachments/4/2/2/6/2/8/a6081922-102-20130902_172622.jpg
I am planning to build a hectocopter Please help me

http://www.rcgroups.com/forums/showthread.php?t=1842313
Logged

Challenges are what make life interesting and overcoming them is what makes life meaningful


Read
« Reply #12 on: September 05, 2014, 09:11:52 PM »
rulingdestiny
Heli Lover
Active Member
**

Reputation Power: 1
rulingdestiny has no influence.
Offline Offline

City: Hyderabad
State: Andhra Pradesh
RC Skills: Beginner
Posts: 3
Join Date: Sep, 2014



That's so much of useful info. Thanks alot its really helpful, will come back if any more help required
Logged


Read
« Reply #13 on: September 05, 2014, 09:13:11 PM »
rcrcnitesh
Plane Lover
Forum Hero

*****

Reputation Power: 22
rcrcnitesh barely matters.rcrcnitesh barely matters.
Offline Offline

City: Chennai
State: Tamil Nadu
RC Skills: Beginner
Posts: 2154
Join Date: Jul, 2013



what's your budget
Logged

Maker | Aeromodeller | Teenager


Read
« Reply #14 on: September 05, 2014, 10:16:22 PM »
rcrcnitesh
Plane Lover
Forum Hero

*****

Reputation Power: 22
rcrcnitesh barely matters.rcrcnitesh barely matters.
Offline Offline

City: Chennai
State: Tamil Nadu
RC Skills: Beginner
Posts: 2154
Join Date: Jul, 2013



what camera you are going to carry all this is very important.
Logged

Maker | Aeromodeller | Teenager


Read
« Reply #15 on: September 05, 2014, 10:30:05 PM »
rcrcnitesh
Plane Lover
Forum Hero

*****

Reputation Power: 22
rcrcnitesh barely matters.rcrcnitesh barely matters.
Offline Offline

City: Chennai
State: Tamil Nadu
RC Skills: Beginner
Posts: 2154
Join Date: Jul, 2013



I would suggest this combo for lifting an slr.
http://www.foxtechfpv.com/tarot-t960-naza-v2-artf-combo-p-1160.html x1

http://www.foxtechfpv.com/t960-1855-propeller-upgrade-p-1165.html x3

http://www.foxtechfpv.com/tarot-5d2-gimbal-full-set-combo-p-1018.html]http://www.foxtechfpv.com/tarot-5d2-gimbal-full-set-combo-p-1018.html]http://www.foxtechfpv.com/tarot-5d2-gimbal-full-set-combo-p-1018.html x1

2x wild scorpion 6s 5800mah lipo From Chintal Sir It is not in his website but you can PM him (use in parallel).
An frsky taranis from Chintal sir It is not in his website but you can just PM him.
« Last Edit: September 06, 2014, 11:24:17 AM by rcrcnitesh » Logged

Maker | Aeromodeller | Teenager


Read
« Reply #16 on: September 06, 2014, 12:09:47 PM »
AL HAM SHARI
Plane Lover
Forum Hero

*****

Reputation Power: 7
AL HAM SHARI has no influence.
Offline Offline

State: Kerala
RC Skills: Not into RC
Posts: 541
Join Date: Nov, 2012

RC



If you have 3 pieces of plywood and a low quality round foam you can buid it yourself (remember to tape foam with transparent cello tape or use hd foam. I am using foam from the box of cieling fan). I will not scratch build it ,even I have many pieces of wood and resources. I dont have enough money to buy electronics. But I will show you the airframe. You have to tape the ply wood or buy balsa. I am showing you the frame of an octa copter. Use rubber balls under the wood where motors are fixed to make a landing gear. Make two rows by covering the upper part of the foam and put a flight controller in there and  put a camera in the hole and attach a servo. If you do this airframe by buying plywood and foam from store it cost you as much ass  Indian Rupees 30

Re: I am planning to build a hectocopter Please help me
* 20140906_120208.jpg (72.73 KB, 640x480 - viewed 597 times.)
Logged

A Dozen Scratch Built Models ,
VT-Speedster Pro
55' UAV Wing
Model  Rocketry


Read
« Reply #17 on: September 06, 2014, 12:28:52 PM »
rcrcnitesh
Plane Lover
Forum Hero

*****

Reputation Power: 22
rcrcnitesh barely matters.rcrcnitesh barely matters.
Offline Offline

City: Chennai
State: Tamil Nadu
RC Skills: Beginner
Posts: 2154
Join Date: Jul, 2013



AL HAM SHARI this is OK but if you want to go professional and add those expensive slr camera and gimbals you will have to buy a readymade frame as they are very strong made up of cf and very capable.
Logged

Maker | Aeromodeller | Teenager


Read
« Reply #18 on: September 06, 2014, 12:39:58 PM »
AL HAM SHARI
Plane Lover
Forum Hero

*****

Reputation Power: 7
AL HAM SHARI has no influence.
Offline Offline

State: Kerala
RC Skills: Not into RC
Posts: 541
Join Date: Nov, 2012

RC



There is a safe idea. Put a simple parachute in The fuselage. And when connection is lost it will inflate ! Tongue
Logged

A Dozen Scratch Built Models ,
VT-Speedster Pro
55' UAV Wing
Model  Rocketry


Read
« Reply #19 on: September 06, 2014, 12:53:13 PM »
AL HAM SHARI
Plane Lover
Forum Hero

*****

Reputation Power: 7
AL HAM SHARI has no influence.
Offline Offline

State: Kerala
RC Skills: Not into RC
Posts: 541
Join Date: Nov, 2012

RC



Or else put threadlocker paste (the one which tightens the hooks) In wood as it strengthens the wood but not foam. Or take wool and tighten the wood fully like a mummy and buy a super glue and cover it fully with the glue. Do not put a drop of super glue or fevi kwik in foam as it eats foam (from my experience last year for science fare in school, I made an rc foam hovercraft from the parts of an old coaxial heli. I used the lipo of  heli to the flight controller giving me zero money loss. After all my friend asked me to put parts with instant adhesive I glued it with full glue and put . After 10 seconds I saw a gooy substance and parts but the foam was gone. I touched it and it was very hot. Then I understood It was a flop project)  Giggle .
Logged

A Dozen Scratch Built Models ,
VT-Speedster Pro
55' UAV Wing
Model  Rocketry


Read
« Reply #20 on: September 06, 2014, 12:53:22 PM »
rcrcnitesh
Plane Lover
Forum Hero

*****

Reputation Power: 22
rcrcnitesh barely matters.rcrcnitesh barely matters.
Offline Offline

City: Chennai
State: Tamil Nadu
RC Skills: Beginner
Posts: 2154
Join Date: Jul, 2013



how will it inflate.
Logged

Maker | Aeromodeller | Teenager


Read
« Reply #21 on: September 06, 2014, 12:56:36 PM »
rcrcnitesh
Plane Lover
Forum Hero

*****

Reputation Power: 22
rcrcnitesh barely matters.rcrcnitesh barely matters.
Offline Offline

City: Chennai
State: Tamil Nadu
RC Skills: Beginner
Posts: 2154
Join Date: Jul, 2013



You cannot put those more than 100 grams motors producing more than 3kg thrust on those pieces of wood they will break.
Logged

Maker | Aeromodeller | Teenager


Read
« Reply #22 on: September 06, 2014, 01:26:58 PM »
devangflyer
Guest

I agree
Logged


Read
« Reply #23 on: September 06, 2014, 01:56:38 PM »
yash10896
Car Lover
Forum Veteran

****

Reputation Power: 5
yash10896 has no influence.
Offline Offline

City: Lucknow
State: Uttar Pradesh
RC Skills: Beginner
Posts: 440
Join Date: May, 2013

Nobody is perfect so am i :)


Re:

Flying with a dslr worth 70-80k on a cheap frame is not a good idea
Logged

Challenges are what make life interesting and overcoming them is what makes life meaningful


Read
« Reply #24 on: September 06, 2014, 02:33:06 PM »
chintal
Heli Lover
Forum Hero
*****

Reputation Power: 4
chintal has no influence.
Offline Offline

City: mumbai
State: Maharashtra
RC Skills: Advanced
Posts: 1522
Join Date: Dec, 2013



Their has to be a professional setup
Using foam and plywood with a dslr A BIG NO!!!
Logged

Rcmumbai.com
Passion is Airborne


Pages: [1] 2  All   Go Up
Jump to:
